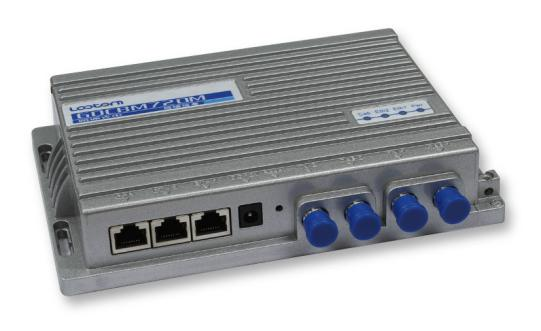

GDCBM720M indoor EOC master

GDCBM720M series independent master is the multi-media access device which is based on HomePlug AV technique, the master ...

Current position：HOME > EOC

GDCBM720M indoor EOC master

Overview    GDCBM720M series independent master is the multi-media access device which is based on HomePlug AV technique, the master make Ethernet signal modulate, and mixed it with TV signal, transmit the multi-media signal to terminal through the CATV coaxial network.
   GDCBM720M adopt plug and play design, set up very easily, no need adjustment, the working status and frequency may auto scan and allocated. Features         ● Aluminum die-casting housing, excellent water-proof and heat dissipation performance
        ● Compatible with mature technique HomePlug AV(IEEE P1901)
        ● Physic rate is up to 500Mbps;Upstream and downstream transmit symmetry
        ● OFDM modulation technique, have good anti-noise performance;Support VLAN, total QoS quality guarantee;
        ● Support 10/100/1000Base-T/Tx Ethernet interface, support MDI/MDIX
        ● Comply with many kinds of network protocols;Plug and play, setup program is not request
        ● It is no need to change the existing HFC network by using taps/splitters.
        ● Support MIB library based at broadcast and television standard, support SNMP v1/v2/v3
        ● Modular design, high shielding performance;Provide 2 way TV input;provide 2 way cable signal output;DC12V power Technical Specifications

Item	Description
Standard	IEEE802.3，IEEE802.3x，IEEE802.3u，IEEEP1901
EoC protocol	Comply with HomePlug AV standard
Protocol	CSMA/CA
Physical rate	300Mbps
Modulation method	support 4096/1024/256/64/16/8-QAM、QPSK、BPSK,ROBO
Data channel	Support data transmit between ethernet and coaxial cable network
Transmission distance	1 km through coaxial cable
Security	128-bit AES encryption
VLAN	IEEE802.1Q(VLAN lagging)
QoS	Support ToS and CoS package classification
flow control	Support flow control based at port
SNMP	SNMPv1v2v3
802.1X	Support IEEE802.1X access certification
Watchdog	Support monitoring CPU by watchdog
Management	Support user management based at SNMP,WEB and CLI
LED light	Power, Ethernet, Cable
Interface	2 TV interface,2 RF interface,2 Gbps ethernet ports,1 RST button
Power consumption	≦9W
Power supply	Input : DC12V
Dimension	162mm×168mm×34mm
Weight	0.5KG
Operation Temperature	0～45℃
Storage Temperature	-20～70℃
Operation humidity	10% - 90%（non-condensing）
